CASE STUDY OVERVIEW
A large international drilling operation in South America faced persistent challenges caused by severe paraffin wax buildup inside drill pipe – a significant operational and capital asset, processing up to 600 drill pipes per day. Traditional mechanical cleaning methods using rattling tools were proving ineffective because the paraffin buildup repeatedly gummed up the cleaning tools, reducing efficiency and effectiveness. Heating the pipe to loosen paraffin also introduced concerns related to potential metallurgical changes to the pipe material and the long-term integrity of these high-value operational assets.
R&R Manufacturing deployed the SuperMax Tubular Cleaning Unit with a 20,000 PSI high-pressure water blasting package to support inspection-ready cleaning under severe paraffin buildup conditions. To validate the solution under real-world conditions, the international drilling operation provided a heavily obstructed drill pipe that had been sitting in a yard for approximately four years and represented a worst-case scenario of paraffin buildup.
During testing, R&R successfully cleaned the severely obstructed drill pipe to an inspection-ready condition in a single pass demonstrating R&R’s ability to engineer and validate specialized cleaning solutions for severe paraffin conditions. This successful testing supported safer, more efficient and repeatable high-throughput pipe cleaning operations in demanding Oil Country Tubular Goods (OCTG) environments.
PROJECT SCOPE
The South American operation required a cleaning solution capable of addressing severe paraffin buildup inside drill pipe within demanding OCTG environments. Traditional mechanical cleaning methods such as rattling tools and heat melting were creating operational limitations because paraffin buildup repeatedly clogged and impaired these methods commonly used for internal pipe cleaning.
The project introduced several operational and engineering requirements:
- Removal of severe paraffin wax buildup form drill pipe interiors
- Elimination of reliance on traditional mechanical rattling tools
- Preservation of pipe integrity and protection of high-value drill pipe assets without excessive heat exposure
- Ability to clean heavily obstructed pipe in a repeatable process
- High-pressure water blasting capability suitable for severe buildup conditions
- Efficient performance capable of reducing repeated cleaning cycles
- Safe operation within industrial drill pipe inspection environments
The environment introduced several project challenges, including extremely heavy paraffin accumulation caused by local drilling formations, traditional cleaning methods becoming ineffective due to tool obstruction, and the need to validate performance under worst-case operating conditions. The project also required international coordination between U.S.-based testing operations and South American stakeholders, along with multilingual technical communication support throughout project discussions and evaluations.
The customer initially learned about the solution after receiving targeted email marketing materials promoting R&R’s cleaning systems. Existing industry relationships helped facilitate communication between U.S.-based stakeholders and the South American operation evaluating the cleaning challenge.
TURNKEY SOLUTION
R&R recommended its flagship SuperMax Tubular Cleaning Unit for the application. The unit supports high-pressure water blasting applications up to 40,000 PSI. For this application, R&R used a 20,000 PSI pump configuration to address severe paraffin buildup conditions.
The SuperMax unit offered several capabilities that differentiated it from traditional cleaning equipment used in heavy-duty tubular cleaning applications:

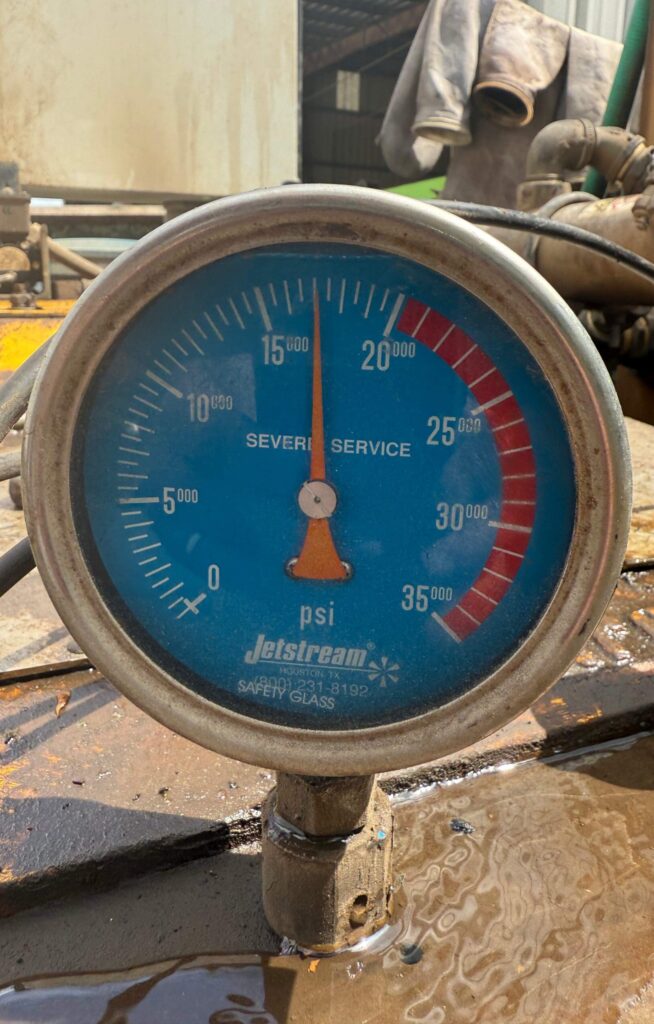

- High-pressure water blasting capability using a 20,000 PSI pump system
- Cleaning range from 2 3/8-inch to 22-inch casing sizes
- Stationary pipe cleaning configuration that minimizes pipe slippage
- Traversing cleaning heads for consistent, inspection-ready tubular cleaning performance
- Single-operator system capability giving operators full visibility and control while keeping them safely out of the operating zone
- Self-contained filtration reclamation system for water management and debris capture
- Mobile platform engineered for rugged operating conditions
- Reduced dependence on traditional mechanical rattling tools

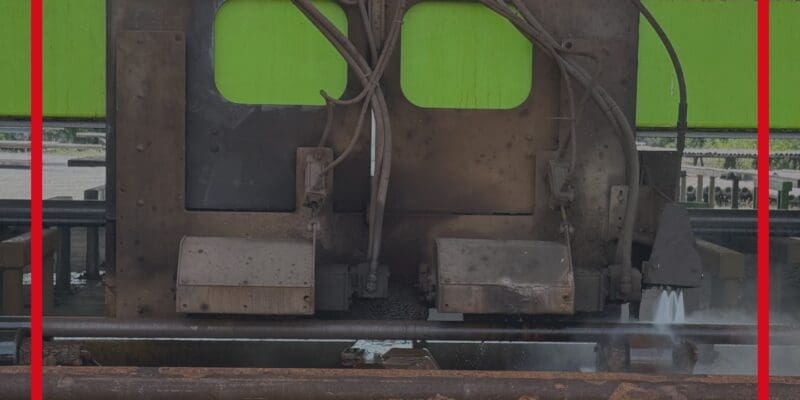

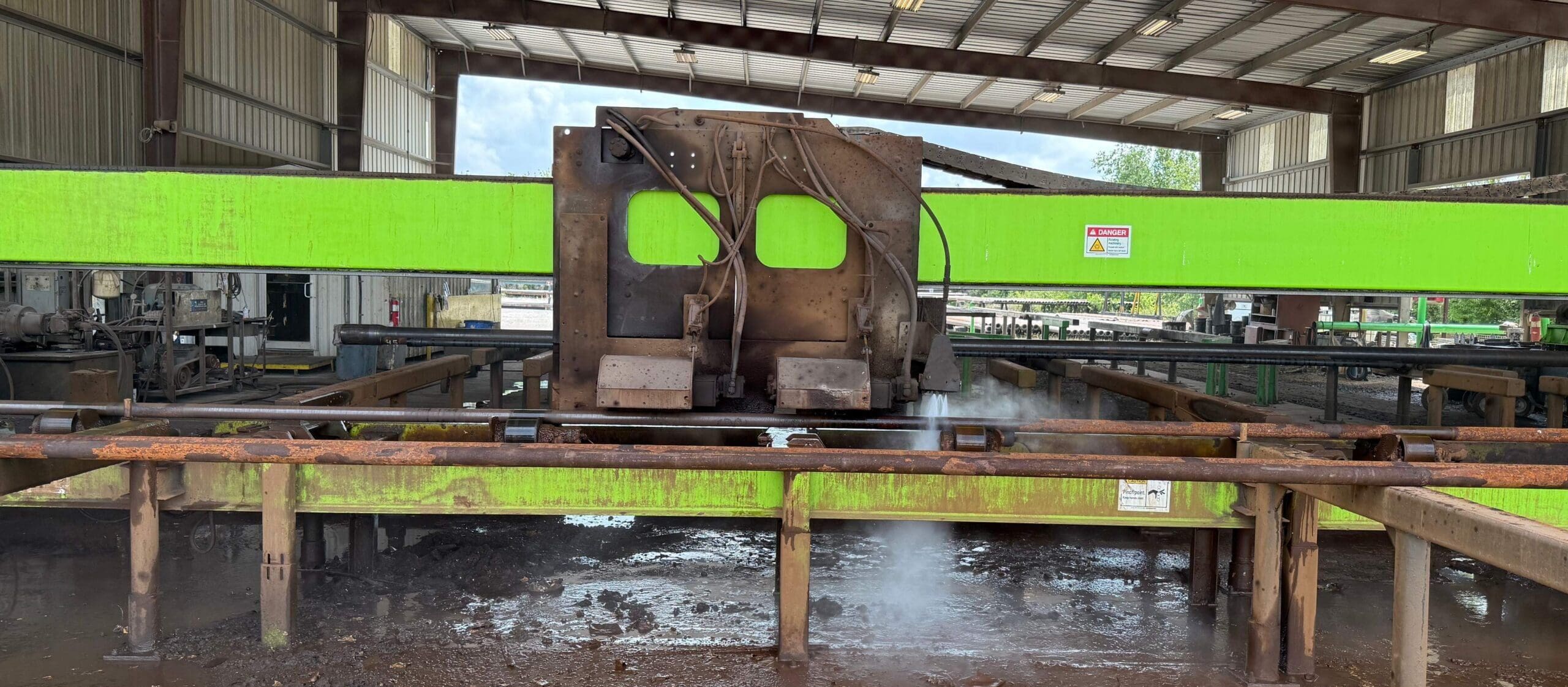

Unlike conventional cleaning systems where pipe moves across rollers during cleaning, the SuperMax system keeps the pipe stationary while the lance system moves through the pipe. This configuration helps minimize pipe slippage while supporting consistent cleaning performance for larger and heavier tubulars.

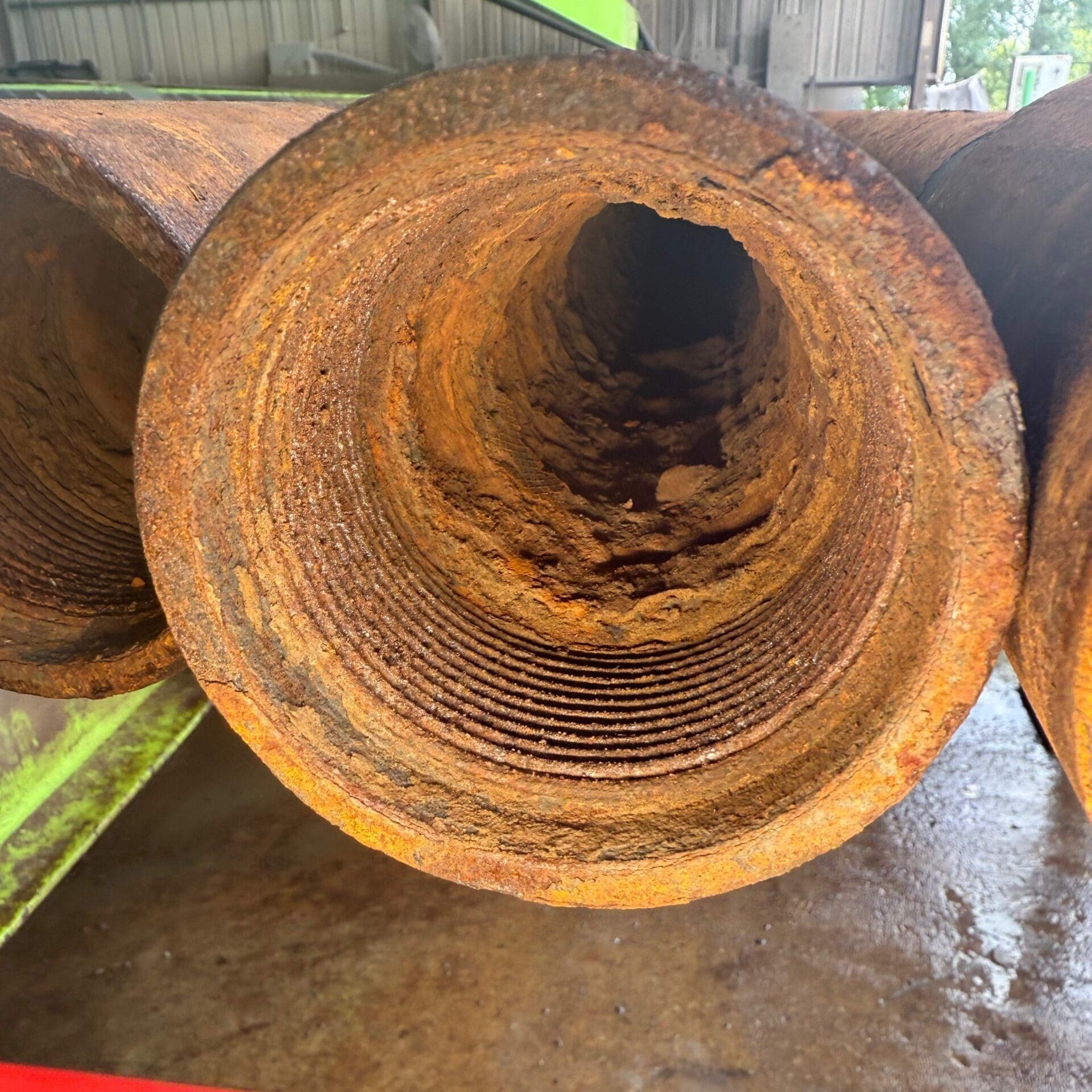

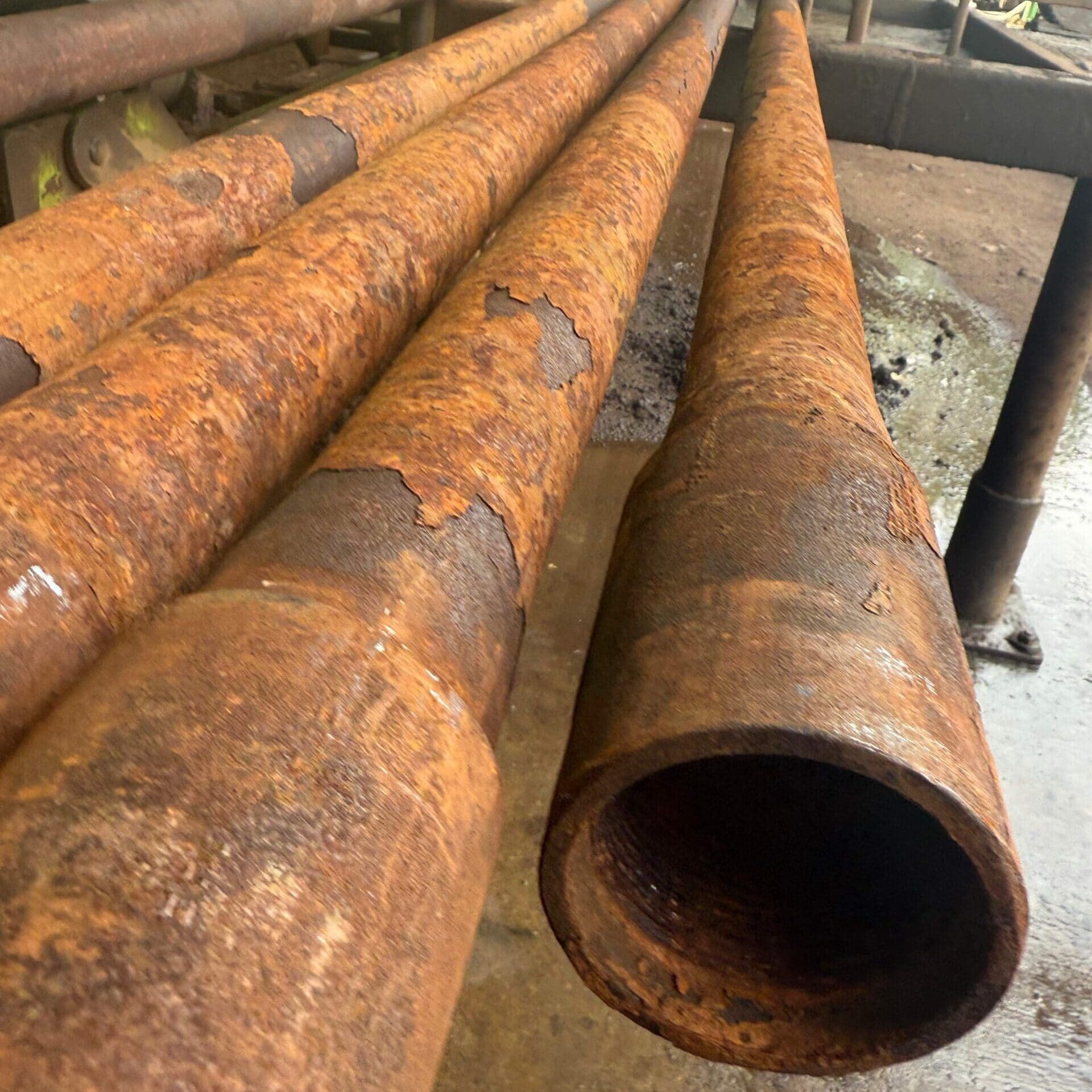

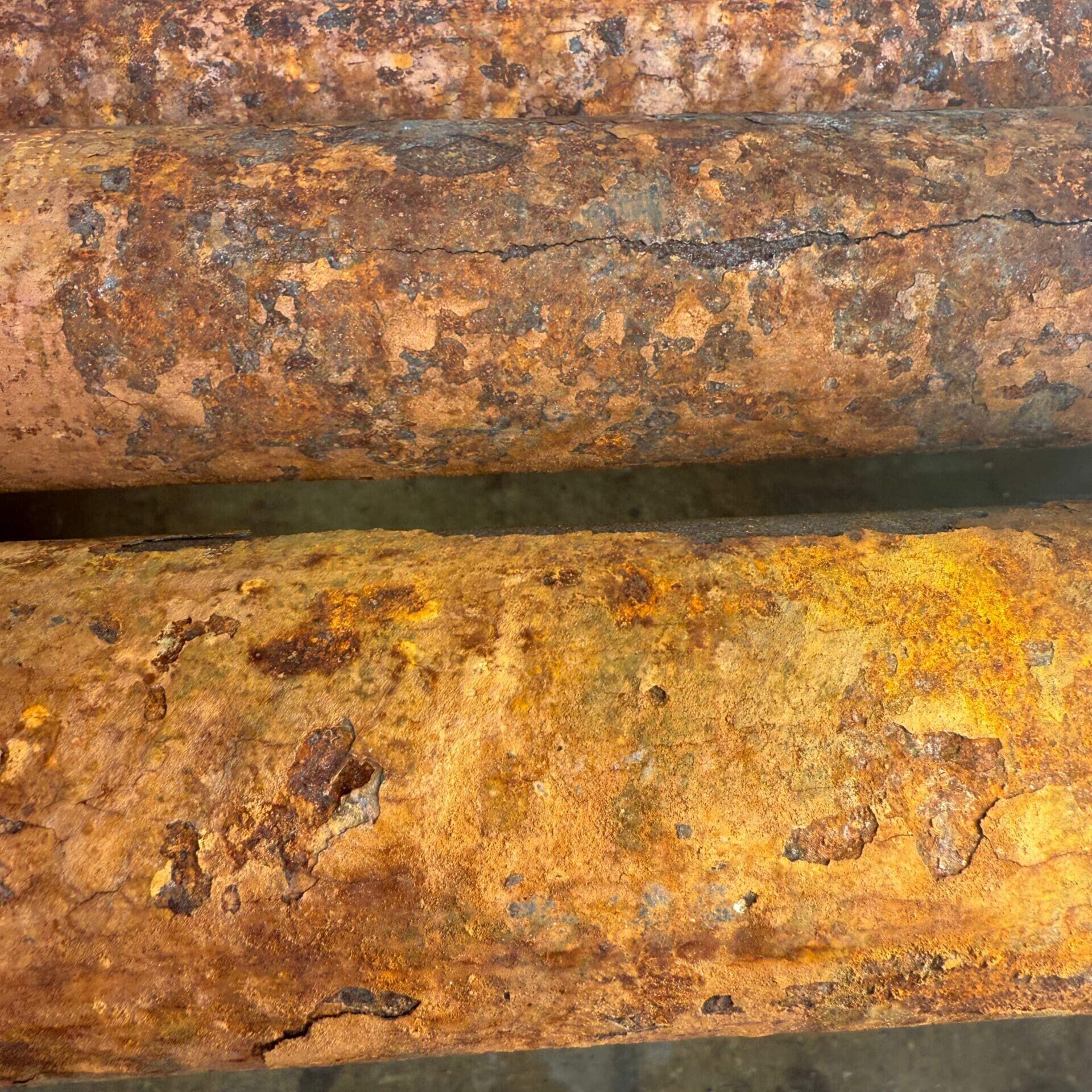

To validate the solution, R&R requested that the customer provide the worst paraffin-obstructed pipe available for testing. The customer supplied heavily obstructed pipe that had remained unused in a yard environment for approximately four years. They then conducted live testing at a U.S.-based facility with customer representatives present during the evaluation process.
ENGINEERING AND IMPLEMENTATION
The implementation process centered on validating whether the SuperMax unit could effectively support inspection-ready cleaning performance under severe paraffin buildup conditions and real-world operating environments.

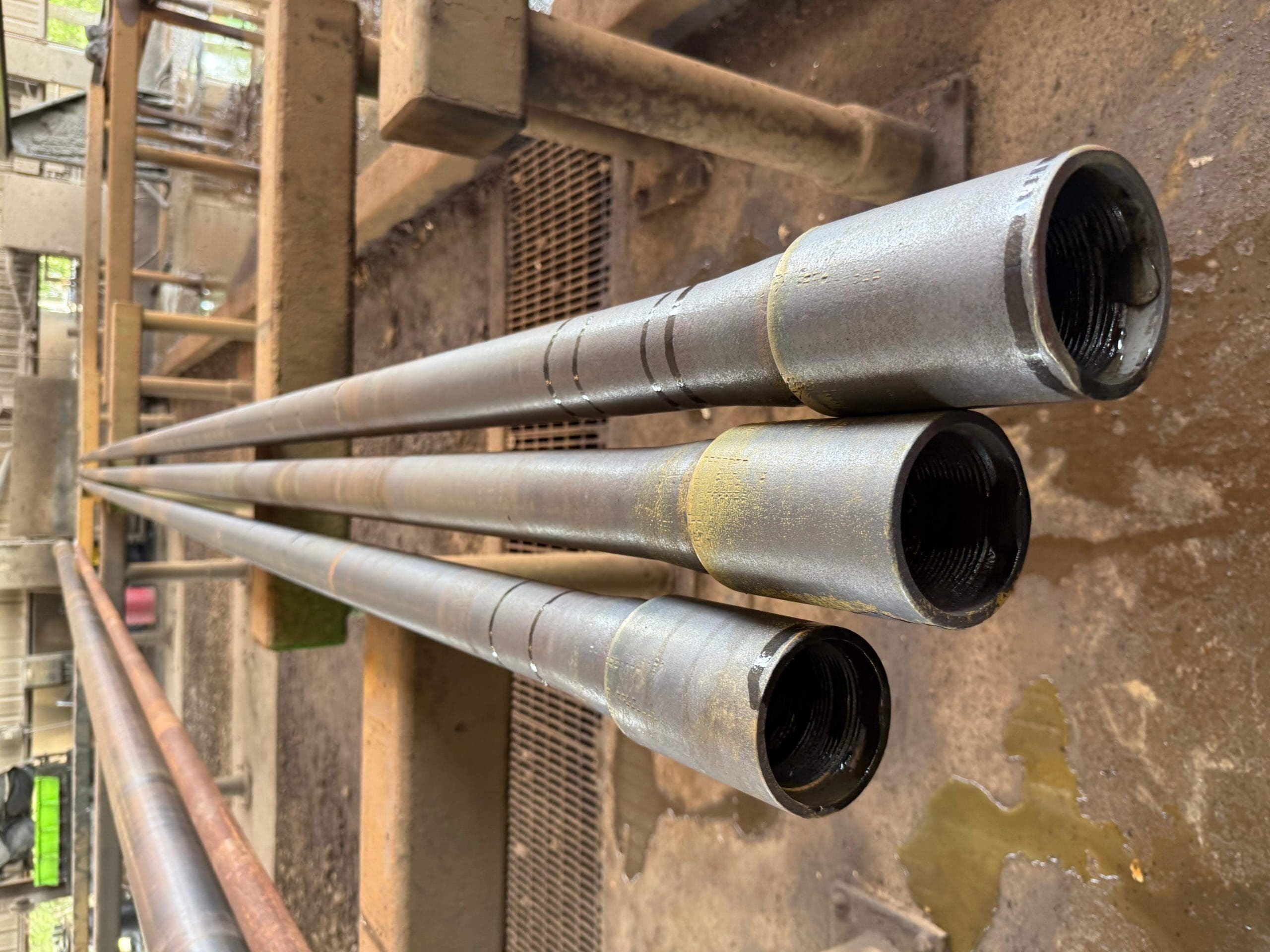

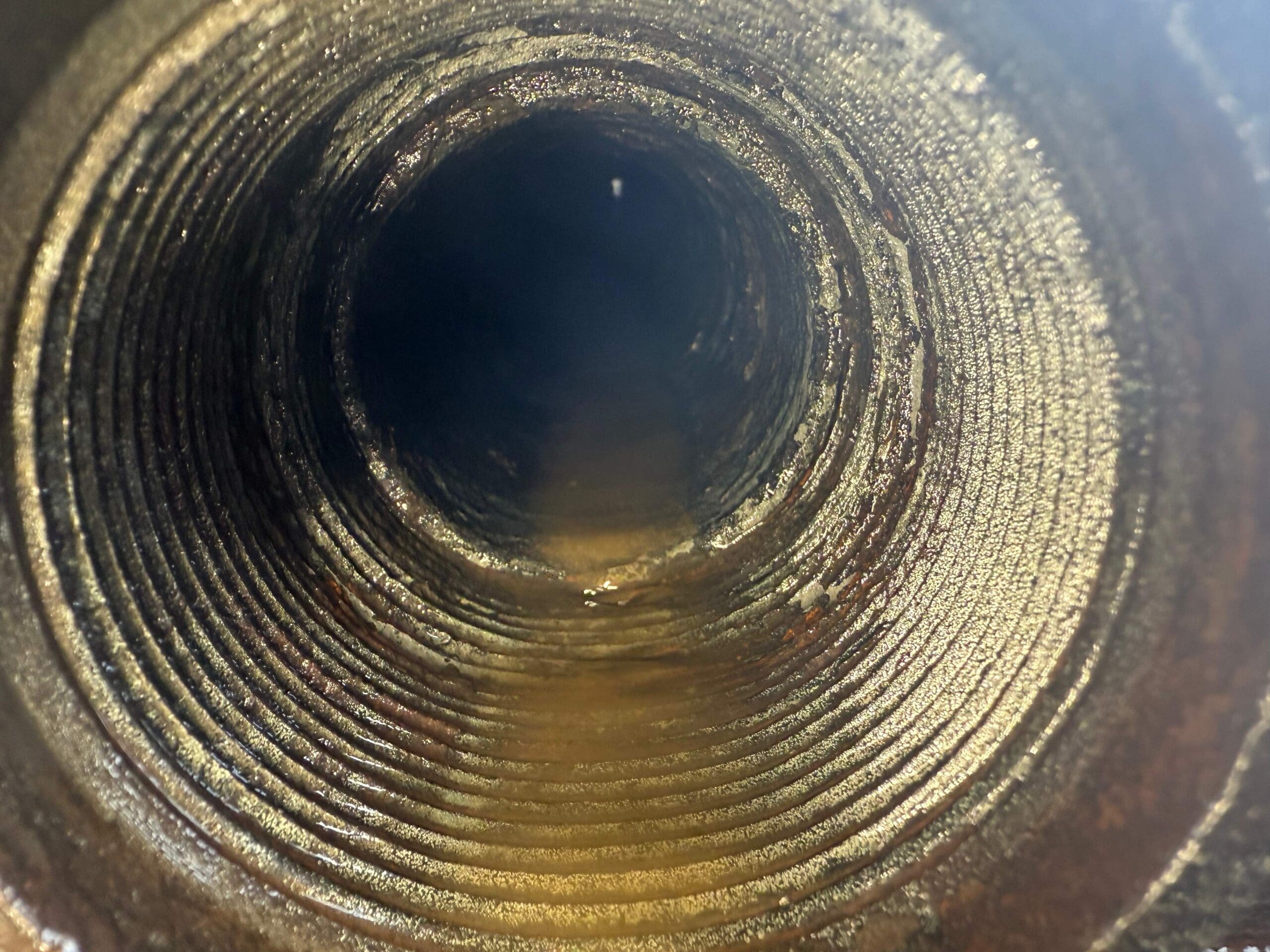

R&R conducted live testing using the heavily obstructed pipe provided by the customer. During testing, the SuperMax Tubular Cleaning Unit successfully cleaned the pipe to an inspection-ready condition in a single pass using high-pressure water blasting technology.
The project incorporated several engineering and operational approaches designed to support reliable, inspection-ready cleaning performance under demanding operating conditions.
High-pressure Water Cleaning Approach
Instead of relying on mechanical rattling tools that could become obstructed by paraffin buildup, the SuperMax unit used high-pressure water blasting to remove buildup without introducing excessive mechanical wear or heat-related metallurgical concerns.
Multilingual Technical Coordination
Because many stakeholders at the regional facility preferred communicating in Spanish, R&R used bilingual technical personnel to facilitate project discussions, technical coordination and customer communication throughout the evaluation process.
Environmental and Water Management Considerations
The SuperMax cleaning unit incorporated a self-contained filtration reclamation system designed to capture debris, support water recirculation and improve water management during cleaning operations.
Equipment Durability and Reliability
The testing unit itself demonstrated significant long-term durability. Prior to this project, the same SuperMax unit had previously survived prolonged saltwater submersion during a South Louisiana hurricane event and later returned to operation with minimal repairs, demonstrating the platform’s durability in demanding industrial environments.
PROJECT TIMELINE
From initial evaluation through live testing and validation, the project was completed in approximately 4 months. During that time, R&R conducted testing using heavily paraffin-obstructed drill pipe supplied by the customer to validate performance under worst-case operating conditions.
OUTCOMES
Severe paraffin removal capability: The SuperMax Tubular Cleaning Unit successfully delivered inspection-ready cleaning of OCTG under severe paraffin buildup conditions.
Single-pass cleaning performance: The system completed cleaning in a single pass, reducing the need for repeated cleaning cycles commonly associated with paraffin-heavy pipe conditions.
Reduced reliance on mechanical rattling tools: The high-pressure water-based approach reduced operational limitations associated with severe paraffin buildup during traditional mechanical cleaning processes.
Improved operational efficiency potential: The single-operator design and single-pass cleaning capability created the potential to reduce labor requirements and improve throughput during high-throughput pipe cleaning operations.
Increased safety for operators: By automating the cleaning process, the SuperMax system allows a single operator to safely manage the operation while reducing dependence on manually operated rattling tools that can create projectile hazards and increase operator risk.
Preserved pipe integrity: The cleaning process avoided excessive heat-based methods that could compromise the metallurgical properties of the drill pipe material.
International technical collaboration: R&R successfully supported coordination between U.S.-based operations and South American personnel through multilingual technical support and collaborative testing validation.
This project demonstrates R&R’s ability to engineer specialized tubular cleaning solutions for demanding OCTG environments while supporting safer, more efficient and repeatable high-throughput pipe cleaning operations under rugged operating conditions. The versatility of the SuperMax platform also supports additional industrial applications, including piling and specialized tubular cleaning processes outside traditional oilfield operations.
R&R Manufacturing supports oilfield service companies, drill pipe inspection operations and industrial environments with heavy-duty tubular cleaning solutions engineered for rugged operating conditions and demanding OCTG applications. From high-pressure water blasting and custom tubular handling to inspection support equipment, R&R delivers durable, efficiency-focused solutions designed to improve reliability, throughput and inspection-ready results. Learn more at www.rr-mfg.com.
